- Size: 15
- Place of Origin: China
- Brand Name: Ludiao
- Model Number: 1325
- Weight: 1200.000 kg

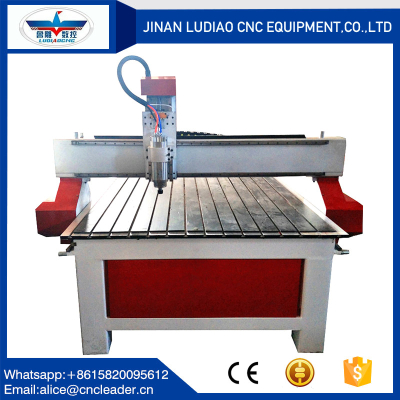

1325 woodworking cnc router machine cnc engraving machine for kitchen cabinet door making
Features:
1. Machine with strong lathe bed, high steel stability, ensure high precision, reliable performance, long using lifetime.
2. Y axis is with double motor driving, ensure stable processing.
3. Adopting high precision rack transmission, high precision& speed
4. Unique multi spindles designed, Spindle quantity& power can be optional, the distance between spindles can be adjusted
5. Digital computer controlling, high efficiency auto process. saving much time& cost, improving production efficiency.
6.Adopts imported linear square guide rail, double row and four row ball slider, loading capacity is big, smooth operation, high precision, long service life. Imported high precision ball screw, ensure processing high precision.
7.Equipped with automatic lubricating system, it can be slightly press for all rail slider oil at the same time.
8.Good software compatibility and can be compatible with type3/Artcam/Castmate/wen tai and other CAD/CAM design software.
Applicable industry:
1. Woodworking industry, density board, fiber board, artificial carving, cabinet door, solid wood doors, craft wooden door, folding screen, process window processing, computer desk and auxiliary panel furniture products processing.
2. Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
3. Other industries: carving can be all kinds of large-scale relief, graven images, widely used in craft gifts industry.
Attachment:
engraving tools, wrench kit, free related cnc softwares, mass engraving photos (.bm p), etc.
- Size: 15
- Place of Origin: China
- Brand Name: Ludiao
- Model Number: 1325
- Weight: 1200.000 kg
1325 woodworking cnc router machine cnc engraving machine for kitchen cabinet door making
Technical parameters:
Model | LD-1325 CNC router machine |
Working area | 1300*2500mm |
z-axis travel | 200mm( can be customized) |
Gantry | Stable steel structure |
Guide rail | Square guide rail |
Transmission | X,Y,-axis high precision gear rack, Z-axis ball screw |
Working table | Industry aluminum profile |
Control system | NC studio |
Spindle motor | 3.5kw, air-cooling(3.2KW water-cooling optional) |
Working voltage | AC220V/380V/50HZ |
Spindle rotating speed | 0-18000rpm |
Working traveling speed | 0-25000mm/min |
Working speed | 0-15000mm/min |
Driver model | 86(450B)Stepper motor |
Driver | Leadshine 860 |
Software | Artcam/Type3/Castmate/Wentai/UG and so on |
Working command | HPGL.G code.U00.Plt.Eng |
Optional parts | 1.Water-cooling spindle 2.Servo motor 3.Rotary axis 4.DSP control system |
