- Size: 1000
- Place of Origin: Ji'nan City Licheng District Lotus Road south of Fujiazhuang
- Brand Name: Ludiao
- Model Number: 5003
- Weight: 1000.000 kg

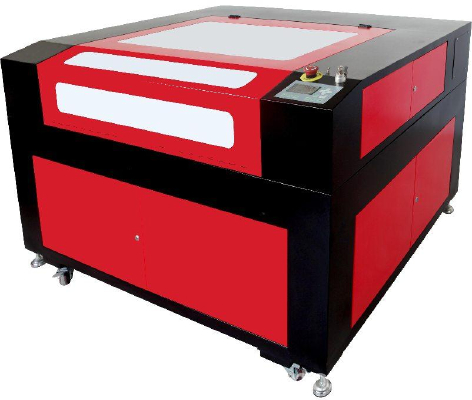

LD-6090 laser cutting machine
Release time: 2015-11-13
LD-6090 laser cutting machine
performance parameter
Processing area: (600x900) mm
Laser type: glass cavity sealing CO2 laser (in line with GB11748-89 standard) (optional).
Frequency excited metal tube) wavelength 10.6um
Laser power: 60-80W (optional)
Laser tube cooling: pure circulating water cooling
Energy regulation: 0-100% control, stepless adjustable internal software 0-100%
Control and drive: high speed DSP control, stepper motor driver with high subdivision
Engraving speed: 0-1000mm/s
Cutting speed: 0-400mm/s
Working voltage: 50HZ 220V
Positioning accuracy: less than 0.01mm
Minimum forming character: Chinese character 1.5mm English letter 1mm
Power: less than 1000W
Table lift: high precision ball screw electric lift 550mm
Working environment: temperature: 0-45 C humidity 5%-95% (no condensate)
Software support format: PL
- Size: 1000
- Place of Origin: Ji'nan City Licheng District Lotus Road south of Fujiazhuang
- Brand Name: Ludiao
- Model Number: 5003
- Weight: 1000.000 kg
