- Size: 16
- Place of Origin: Jinan
- Brand Name: Ludiao
- Model Number: LD1325
- Weight: 1500.000 kg

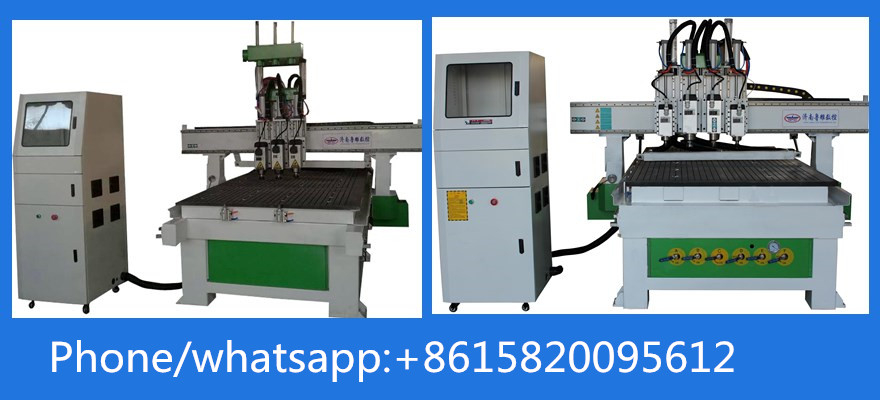

LD1325 - Q3/Q4 CNC machine is a professional machine used for panel based furniture drilling and cutting , completely replace the traditional sliding table saw and electronic cutting saw, get rid of traditional cutting model dependence on labor, cutting and drilling hole in one machine at the same time, combine with professional production design software, realize intelligent production.Also can complete a small amount of cabinet door milling shape sculpture.Save labor 、materials、time !
1. High quality accessories : adopt Taiwan linear guide;
Imported ball screw;
High power cutting spindle;
Imported planetary reducer;
Taiwan servo drive system, etc.
2. Reasonable design: independent control cabinet,more convenient to use and maintain.
3. Perfect automatic lubricating oil lubricating system, which extends the service life of the machine.
4. This machine is suitable for the processing of diversified and complex products with wide functions: drilling, grooving, cutting, carving,hollowing and milling.
5. The whole machine bed is machined by CNC 5-face milling machining center to ensure the machining accuracy of the whole machine.
6. Software: special designed and produced software to realize the quick design and unpacking of custom wardrobe cabinets, intelligent typesetting and zero error.
Optional machine type: double working station, three process, four process, automatic up and down feeding, automatic feeding.
Application industry:
1. Furniture industry: cutting and carving all kinds of panel furniture, solid wood furniture;
2. Advertising industry: craft gifts, crystal ornaments, advertising signs, mini engraving and cutting, etc.;
3. Industrial industry: sandwich board, nylon board, fiberboard and various soft metal processing;
- Size: 16
- Place of Origin: Jinan
- Brand Name: Ludiao
- Model Number: LD1325
- Weight: 1500.000 kg
mode | LD1325-Q3 Three- process Woodworking CNC Cutting machine | LD1325-Q4 Four- process Woodworking CNC Cutting machine | LD1325-Q4D Double-station four-process Woodworking CNC Cutting machine |
X/Y/Z trave; | 1300\2500\200mm (Size optional)
| ||
Table size | 1220*2440mm | ||
Idle speed Max working speed | >35000mm/min | ||
wrkinb speed | >30000mm/min | ||
REPOSITION | ±0.02mm | ||
Work fixing | Vacuum suction table(Double vacuum suction table optional) | ||
Code | G code *.ENG、u00*.mmg*.plt | ||
Power(Without spindle) | 3000W以上 3000W above | ||
Driving mode | Servo drive | ||
Machine size | 3200*2200*1900mm | 3200*2300*1900mm | 3200*2400*1900mm |
